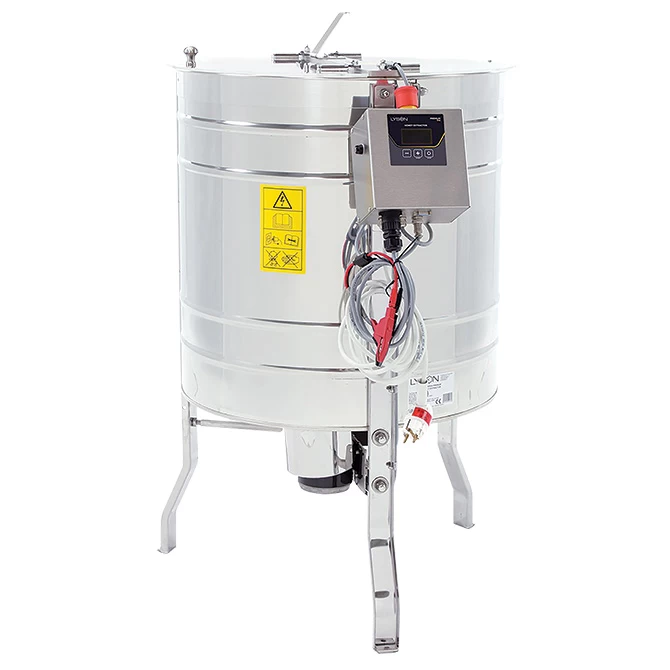

Premium 20 Frm Extractor 600mm

This premium, 22 gauge stainless steel radial extractor keeps up with commercial workloads, handling 10+ hive operations (Larger operation? Check out our 30 frame premium extractor).

Features:

• Conical base to facilitate honey drainage
• Stainless steel 1-1/4″ valve with O-ring seal

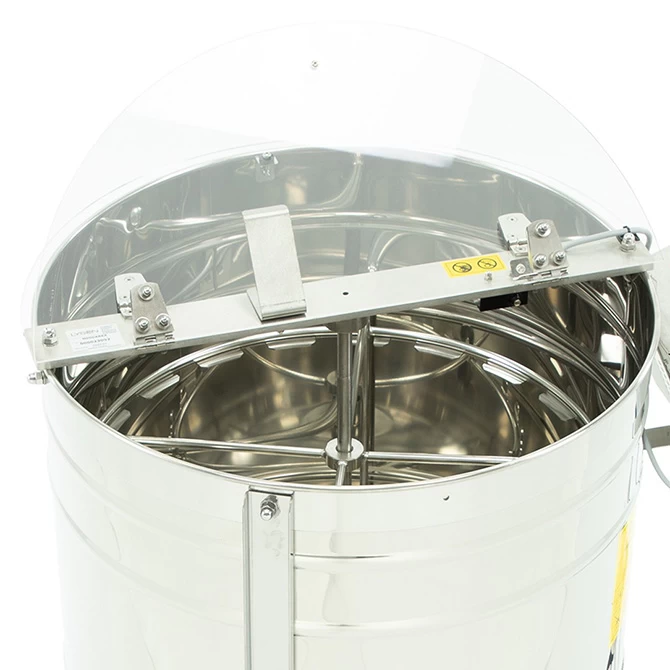

• Extra thick Plexiglas cover lets you observe honey extraction
• Can be powered by a 12V battery for use in a building with no major power source, or standard 120 volt plug.
• Can hold 4 to 8 deep frames (9-1/8″), 20 medium frames (6-1/4″) or 20 shallow frames (5-3/8″)
• Variable speed 350 watt (~1/2 HP) DC motor
• Ultimate safety: Braking system with STOP button, emergency button, or ceasing operation when the cover is lifted
• Energy saving: The motor is only supplied with as much power as it needs. It will also automatically shut down after 15 minutes of inactivity.

Motor Specifications

A variable speed 350 watt (~1/2 HP) DC motor is powered by an adjustable controller with digital indication of motor speed. Speed is adjusted up and down through a keypad. The motor speed is controlled by pulse width modulation (PWM), which switches power on and off as needed instead of dissipating (i.e. wasting) power through a rheostat or resistor. The result is very efficient, low power extractor operation with excellent control. A five gallon pail will fit under the honey gate if the extractor is mounted on a pallet or thick piece of plywood.

Note:

• Smaller operation? Check out our 12 frame motorized extractor (5+ hives).
• For an accurate freight quote, please call Betterbee 1-800-632-3379 or email us: [email protected]

Shop extractors for 8-12 hive operations

This Lyson Premium Line product is covered by a 7-year structural and a 3-year/36-month limited warranty. Click to read the Betterbee Warranty on Lyson Product policy for more details.
