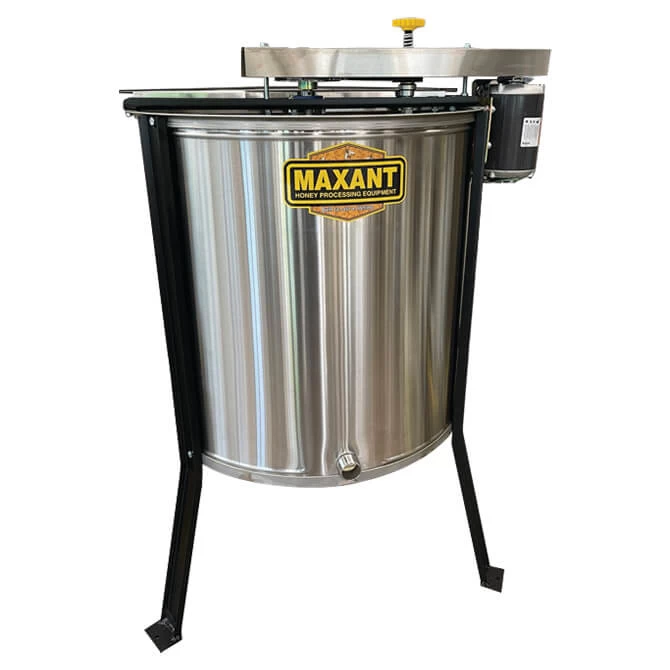

Maxant 20 FR Extractor W/ Legs

Perfect for beekeepers with 8-12 hives. Seamlessly extract honey with no need to flip frames! This radial extractor features a 1/3 HP motor that allows you to adjust speed to meet your needs.

Holds 10 deep frames or 20 medium or shallow frames.

Features:

20 gauge #4 brushed stainless steel: Durability you can count on

Rugged 1/3 HP motor: Manually adjust speed for optimal spin

Stainless steel legs: Provide stability while you extract

Conical bottom: Helps to efficiently drain honey from the extractor

Note:

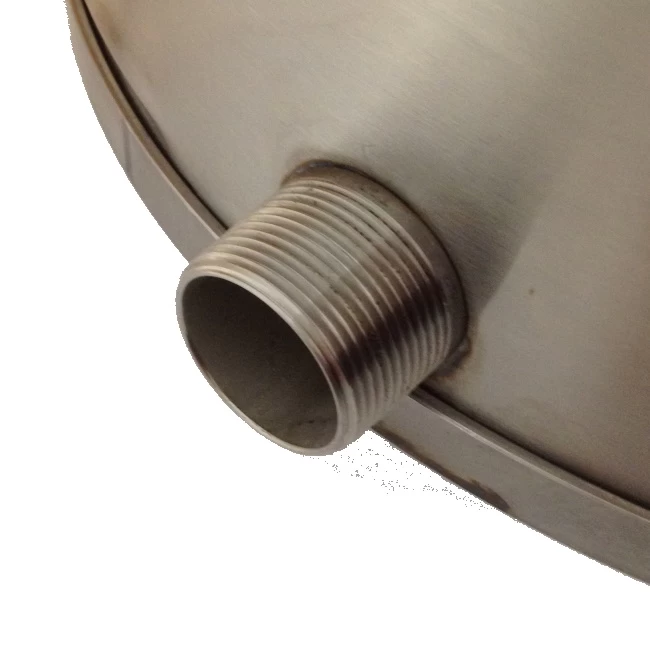

• Unit is supplied with 1-1/4″ Male NPT threaded fitting. A threaded coupling can be used to attach a plastic honey gate (both sold separately).
• For an accurate freight quote, please call Betterbee 1-800-632-3379 or email us: [email protected]

Dimensions

• 26″ Diameter x 26.5″ Tall

Radial vs Tangential What is the Difference?

Tangential:

• Frames are parallel with the center of the basket. Only the comb facing outward is extracted.
• Frames must be flipped multiple times to extract both sides and to prevent blowouts where the comb breaks due to the weight of the honey.
• Better for thicker honey as it’s easier for honey to move perpendicular, than to move at a slight angle like that of the radial extractor.

Radial:

Frames face the center at a slight angle so comb on both sides can be extracted.

Frames don’t need to be flipped.
