Lyson Automatic Bottling Valve

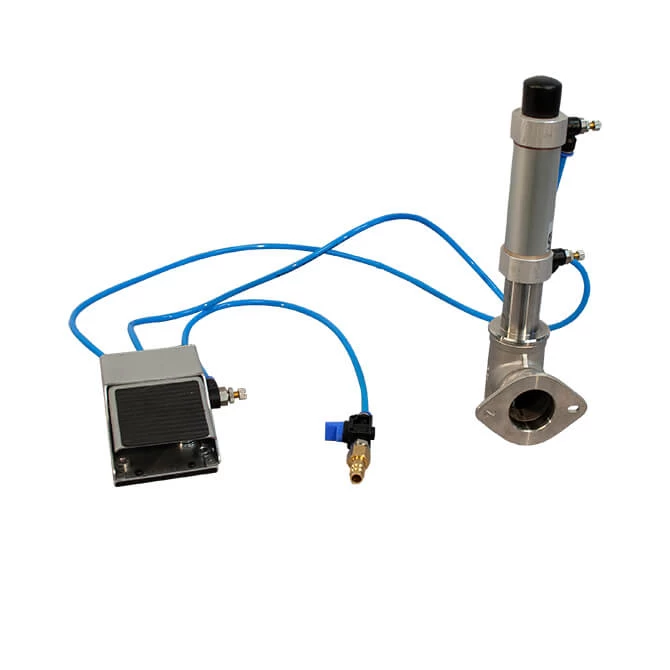

Keep your hands free with this air actuated bottling valve from LYSON. The valve is based on our LYSON manual bottling valves but this unit has a foot operated air piston to open/close the valve.

The valve bolts to a honey gate flange on your bottling tank.The valve flange has a flat mounting surface. The tank honey gate provides the o-ring to seal the joint

Note: We do not reccommend using this valve to bottle creamed honey.

Product Specifications:

• Valve height: 11 1/2″
• Valve width: 3″
• Valve depth: 3 1/2″
• Flange bolt maximum diameter: 7/16″
• Flange bolt spacing centerline to centerline: 2 1/2″ to 2 13/16″
• Flange flat surface diameter (mating o-ring dimension) 1 5/8″ to 2 1/8″
• Valve tapered plug small diameter: 3/4″
• Foot pedal: 3″ W x 5″ L x 2 1/8″ H
• Tubing length between valve and foot pedal: 36″
• Maximum allowed air pressure: 140 psig
• Normal operating air pressure: 85 psig
• Tubing air connection: 1/4″ male npt
• Air to open valve
• Spring close with air assist
• Requires compressed air source (not include)
• Weight: 5 lb 5 oz

This Lyson Standard product is covered by a 2-year structural and a 2-year/24-month limited warranty. Click to read the Betterbee Warranty on Lyson Product policy for more details.
