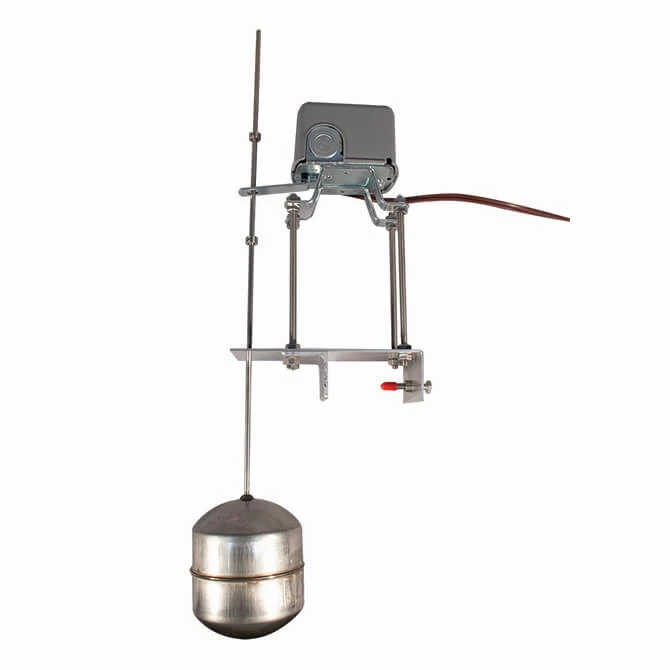

Honey Sump Float Switch

This float level switch will automatically maintain a LYSON 1000mm Heated Honey Sump level by starting and stopping a LYSON honey pump. You can now concentrate on other honey house tasks without damaging your pump or overflowing the sump.

The unit clamps to the sump wall and plugs into the honey pump control box. The pump activation points (high and low) are adjustable by moving collars on the float stem or rod. The switch turns the pump on at the high and turns the pump off at the low.

The switch provides a continuity signal to the pump controller electronics. It is not rated for any voltage (DC or AC) or current applications such as pump motor power switching.

The following pumps can be operated with this float switch:

• Lyson Honey Pump 370W 120V
• Lyson Honey Pump 370W 230V
• Lyson Pump Large 1.5kW

Product Specifications:

• Stainless steel float
• Sump wall thickness: 1-3/4″ to 2-3/8″
• High honey level: 2-1/2″ below top of sump
• Low honey level: 13″ below top of sump
• Max level range: 5-3/4″
• Float rod length: 17-1/2″
• Switch height: 9-1/2″ above top of sump
• Cord length: 10 feet
