Deep Frame Isolation Cage

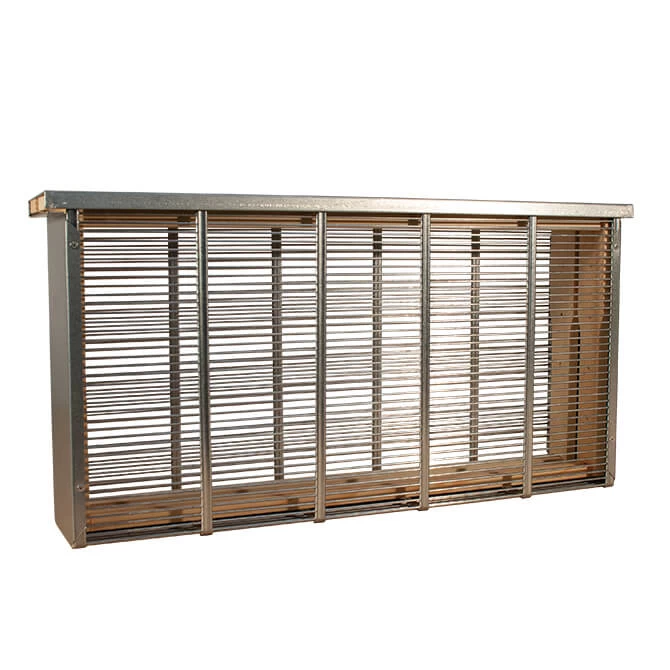

This queen isolator cage gives you control over your queen’s location, allowing complex queen manipulations without the hassle of other caging or confinement methods. The cage is made of bars spaced like a queen excluder. Our isolator holds one deep (9-1/8″ tall) Langstroth frame and fits inside a deep hive body.

If the queen is inside the cage, she will work to fill the single frame with brood but won’t be able to leave.

If the queen is outside the cage, you can prevent her from laying eggs on the isolated frame.

In either case, workers will happily move through the bars to tend to the brood and the specific pheromones of a laying queen continue to keep the colony cohesive, which is not the case when caging her in a standard queen cage.

Uses include:

• Short-term confinement of a queen from a recently caught swarm or package, so that she can begin laying without any risk of the bees absconding
• Limiting the queen to one frame, and then removing that frame of brood, to produce a completely broodless colony for certain mite treatments
• Imposing a brood slow-down to limit colony growth before a dearth
• Isolation of the queen for a day to produce eggs or brood of a very precise age
• Short term isolation of the queen on one frame so that you can quickly find her later

Be careful to insert and remove the frame GENTLY and SLOWLY if the queen is on it, since she can be killed if she is scraped between the frame and the cage wall.

The cage occupies more space than a single frame, so two frames should be removed to make ample room for it in a deep hive body. One deep frame is inserted into the cage, and the solid cover is placed on top. The cover sits on top of the frame’s top bar, and can be removed to give access to the frame without the need to remove the cage itself. Since the top edges of the cage are flush with the sides of our wooden hive bodies, the queen will be perfectly contained. If you are using equipment of different dimensions, you may want to press some spare wax on either side of the top bar to absolutely ensure that the queen cannot leave the cage.

Product Specifications:

Outside Dimensions

• Top bar cover length: 19-1/16″
• Top bar cover width: 2-1/4″
• Top bar cover height: 9/16″
• Comb area length: 18-1/8″
• Comb area width: 2-3/16″
• Comb area height: 9″

Inside Dimensions

• Top bar cover length: 19-1/16″ (end is open)
• Top bar cover width: 1-3/4″
• Top bar cover height: 1/2″
• Comb area length: 18″
• Comb area width: 1-3/4″
• Comb area height: 8-7/8″

Have a cage? Keep it clean!

Check out our newsletter article, Using a Frame Isolation Cage in Varroa Management to learn about the method of using isolation cages to control mites.
