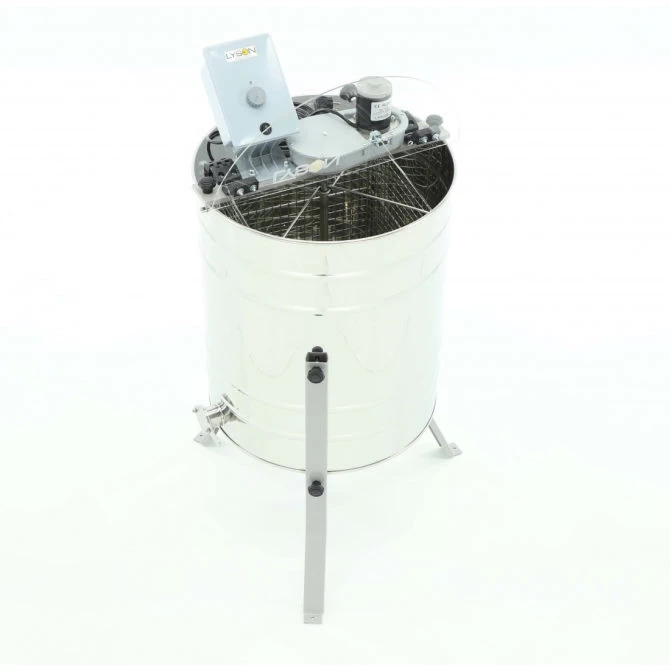

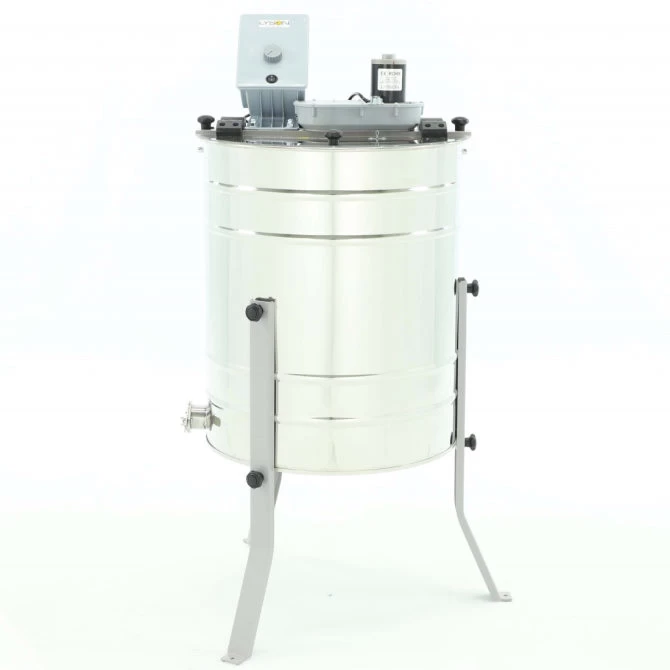

Compact Motorized Extractor

This motorized extractor was developed to be an upgrade from the standard 4 frame extractor we offer. It extracts frames faster due to its larger drum diameter, and can also extract four deeps at a time instead of two. The small dimensions of this extractor make it easy to move around the honey house! It can extract 4 deeps or mediums, or 8 shallows, at a time. Comes in a box
made for easy self-assembly.

Features a tangential extracting drum with universal wire basket. The drum, constructed of 24 gauge stainless steel, has a conical bottom to drain out the extracted honey without tipping.

Product Specifications:

• Drum Diameter: 20″ (500mm)
• Drum Height: 23 3/4″
• Overall Drum Height: 37 1/4″
• 1 1/2″ Plastic Honey Gate
• Clearance below Honey Gate: 13 1/4″
• Basket Height: 17 1/2″
• Basket Width: 13″
• Power Supply: 120VAC
• Motor: 120 Watt
• Some assembly required
• Unit weight empty: 45 pounds

This Lyson Minima Line product is covered by a 2-year structural and a 2-year/24-month limited warranty. Click to read the Betterbee Warranty on Lyson Product policy for more details.
