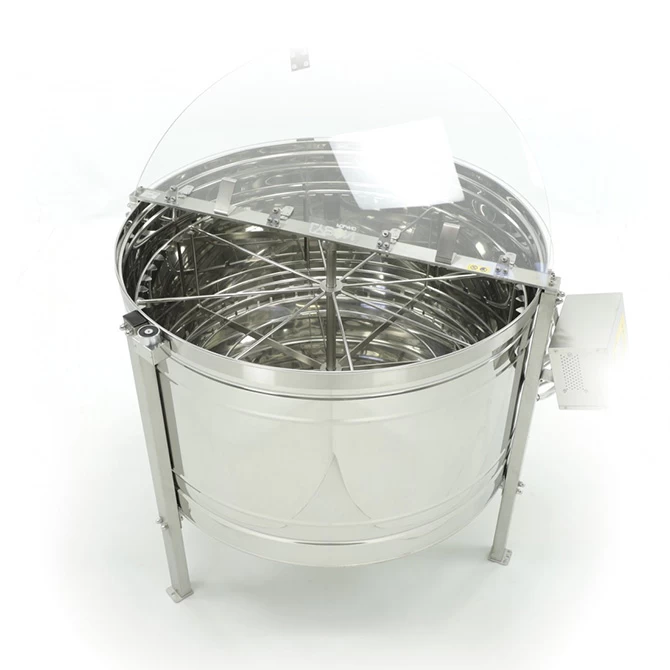

56 Frm Premium Extractor1200mm

This premium, 22 gauge stainless steel radial extractor keeps up with commercial workloads, handling 30+ hive operations (Larger operation? Check out our 88 frame premium extractor).

Step into complete control with a fully programmable controller that couples with a variable frequency drive to ensure ultimate precision. Adjust speed variance in increments as little as 1%. An eight program memory capacity comes with two manually operated programs and an automatic mode with factory settings leaving you with the opportunity for five custom programs.

How do programs work?

Each program cycle consists of seven steps and each step is defined by three parameters: the starting time, extractor speed, and duration. Using the programs, the extractor can be set to automatically accelerate over time, and then stop when finished. The extractor can also be reversed if desired as part of the program.

Features:

• Capable of holding 56 deep (9-1/8″), medium (6-1/4″), or shallow (5-3/8″) Langstroth frames
• Plexiglas cover to observe honey extraction safely
• Extraction cycle controlled by a top-of-the-line HE-03 automatic motor controller with 8 programs with seven steps, each with an adjustable start time and extractor speed
• Speed control: Variable frequency drive
• High quality Mitsubishi inverter supplies power to the motor for a long lasting and quieter machine
• 4.3″ full color LCD display to access settings and monitor progress
• Conical base to facilitate honey drainage

Note:

• Smaller operation? Check out our 42 frame premium extractor (20+ hives).
• A 230V AC unit is also available by special order
• For an accurate freight quote, please call Betterbee 1-800-632-3379 or email us: [email protected]

Product Specifications:

• Driven by a sealed, inverter-driven AC motor directly coupled to the bottom end of the extractor shaft through an industrial grade gearbox
• Overall height: 46″
• Tub diameter: 47-1/4″ (1200mm)
• Controller box extends 12″ beyond tub diameter
• Tub Depth: 31″
• Bottom of honey gates to floor:15-1/8″
• Two – 2″ stainless steel honey gates with O-ring seal
• Honey gates are 120 degrees apart
• Three stainless steel legs
• Tub wall thickness: 0.8mm (22 gauge)
• Tub bottom thickness: 1.0mm (19 gauge)
• Power requirement:120V AC, 7 Amps
• Motor size: 0.75kW (1 HP)

Shop extractors for 15+ hives

This Lyson Premium Line product is covered by a 7-year structural and a 3-year/36-month limited warranty. Click to read the Betterbee Warranty on Lyson Product policy for more details.
